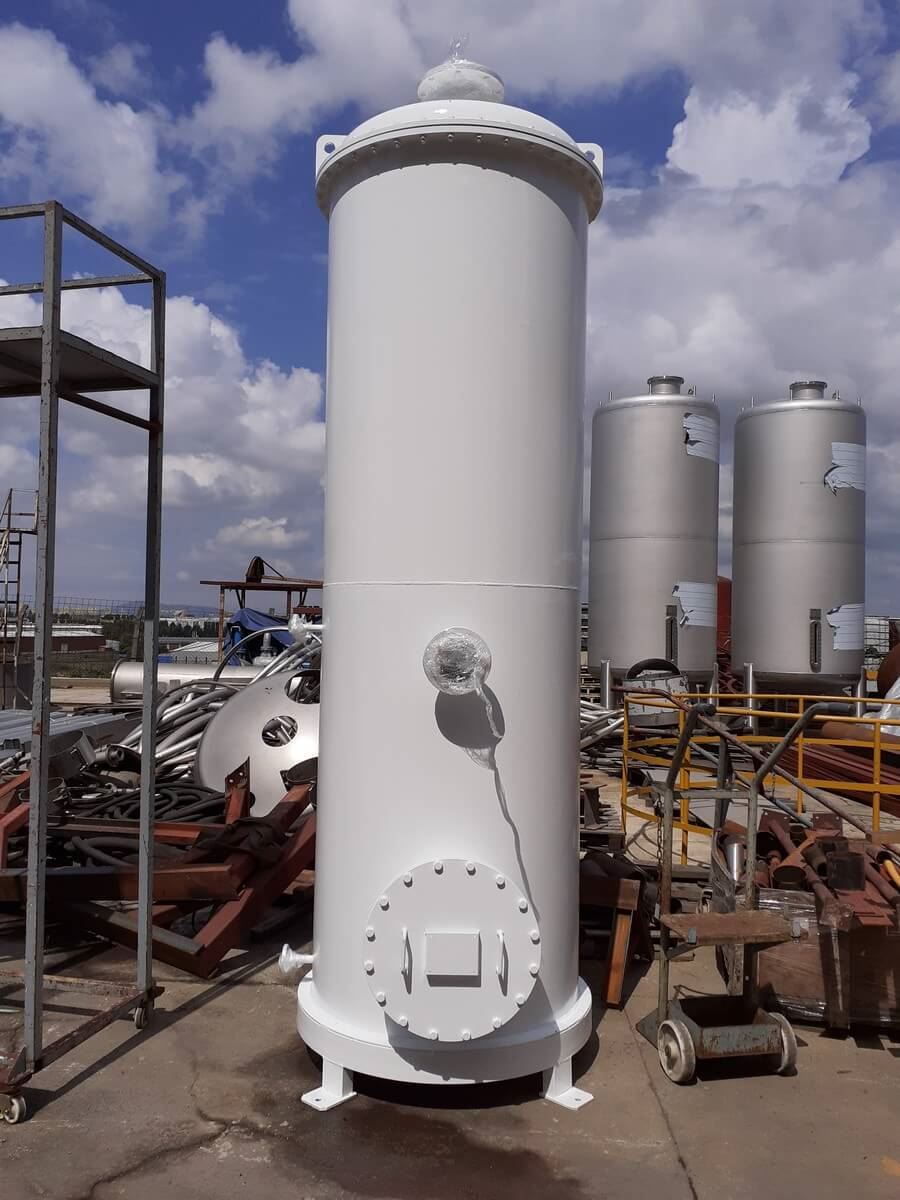

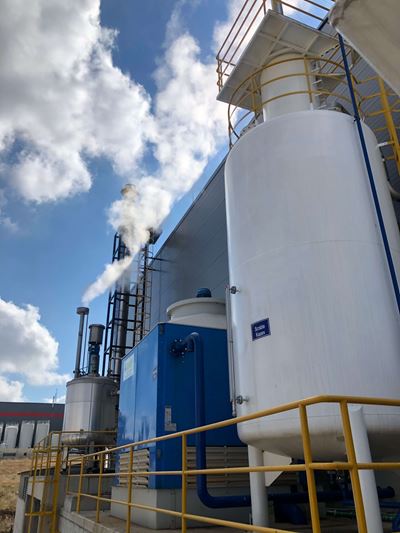

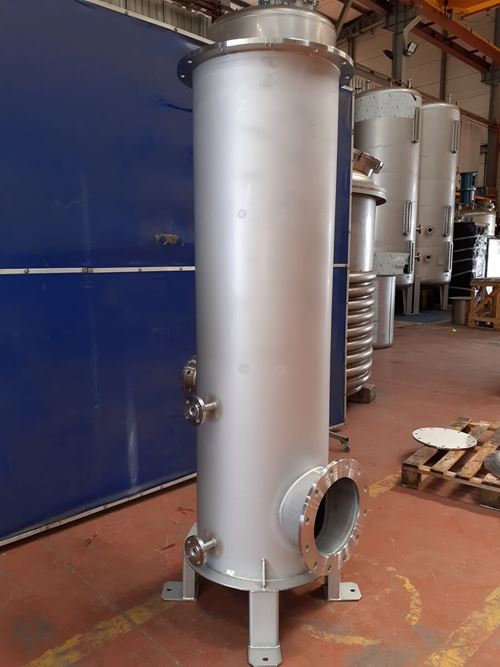

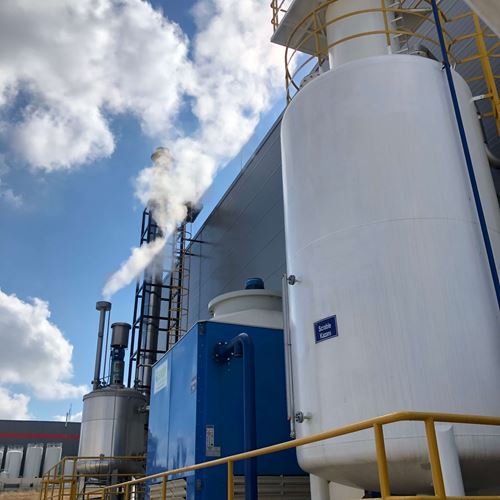

Scrubber Units, Scrubber Gas Washing Unit

Categories: Products , Scrubber Unit


Scrubbers are systems that remove environmentally harmful gases, dust or particles from the processes before they are released into the atmosphere. System;

  • Exhaust fan
  • Spray tunnel
  • Washing collection pool
  • High pressure pump
  • It consists of chemical dosing and control units.

Process gases; water-soluble toxic gases or acids (such as HCl ..), ammonia, ethylene glycol, formaldehyde, sulfuric compounds, CO2. These are over the air with scrubber, Scrubber Gas Washing Unit they are effectively removed. A liquid, in which a suitable neutralization agent is added to the process, is usually sprayed into the air stream in the water, spray tunnel. In this way, Scrubber Gas Washing Unit gases and particles in the air are removed from the air by chemical reaction with water or by absorption. Supplementing with evaporating water, fresh water and chemicals. The dirt and dust accumulated in the washing tank are periodically drained from the collection pool.


  • High cleaning efficiency; 70% in fine dust, 80% in coarse dirt
  • Corrosion resistant material: AISI 304, 316, 316L
  • Easy maintenance and assembly
  • Dosing equipment, installation and automatic pH control for chemical addition
  • Stainless high pressure pump
  • Quality manufacturing
